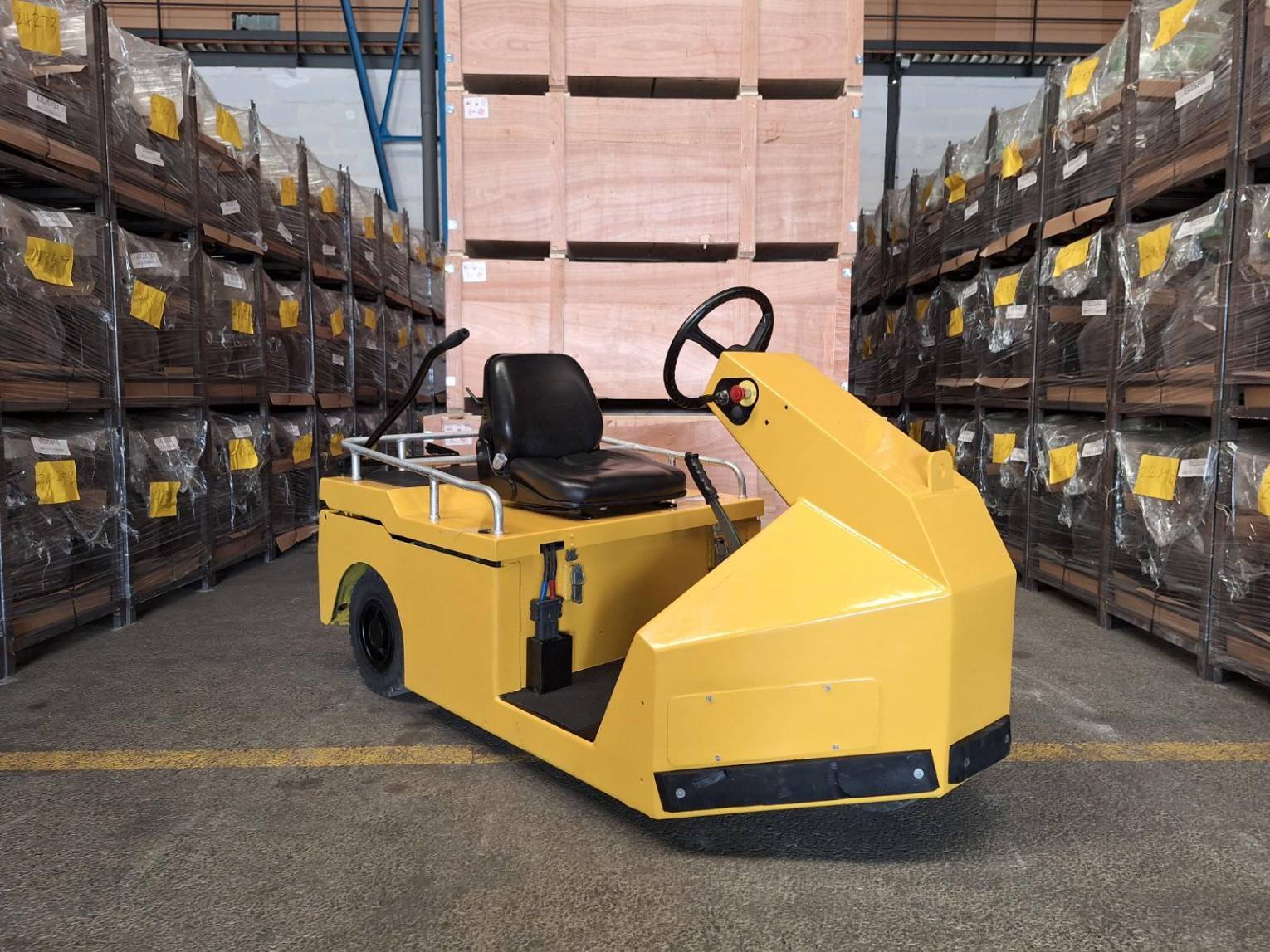

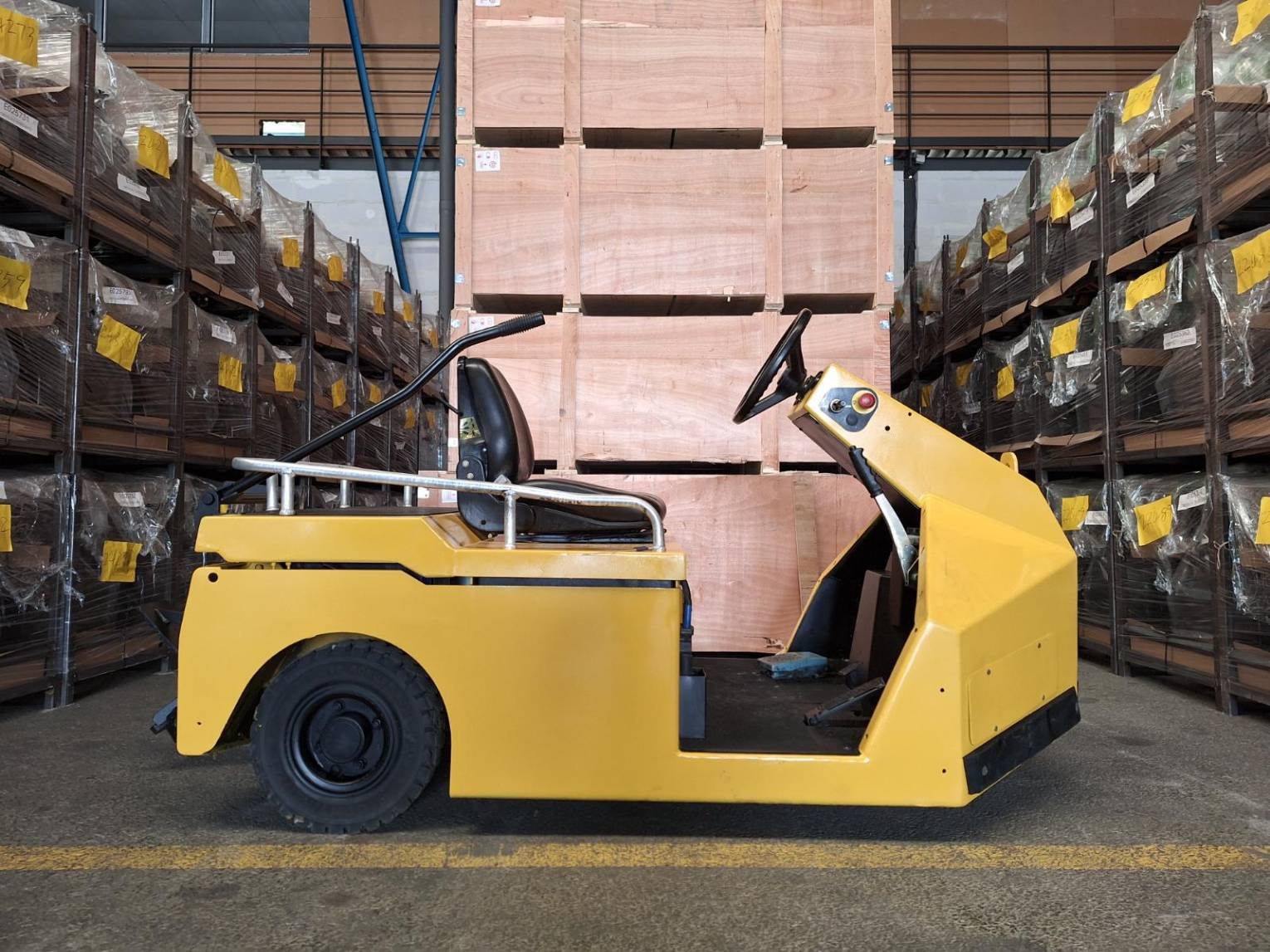

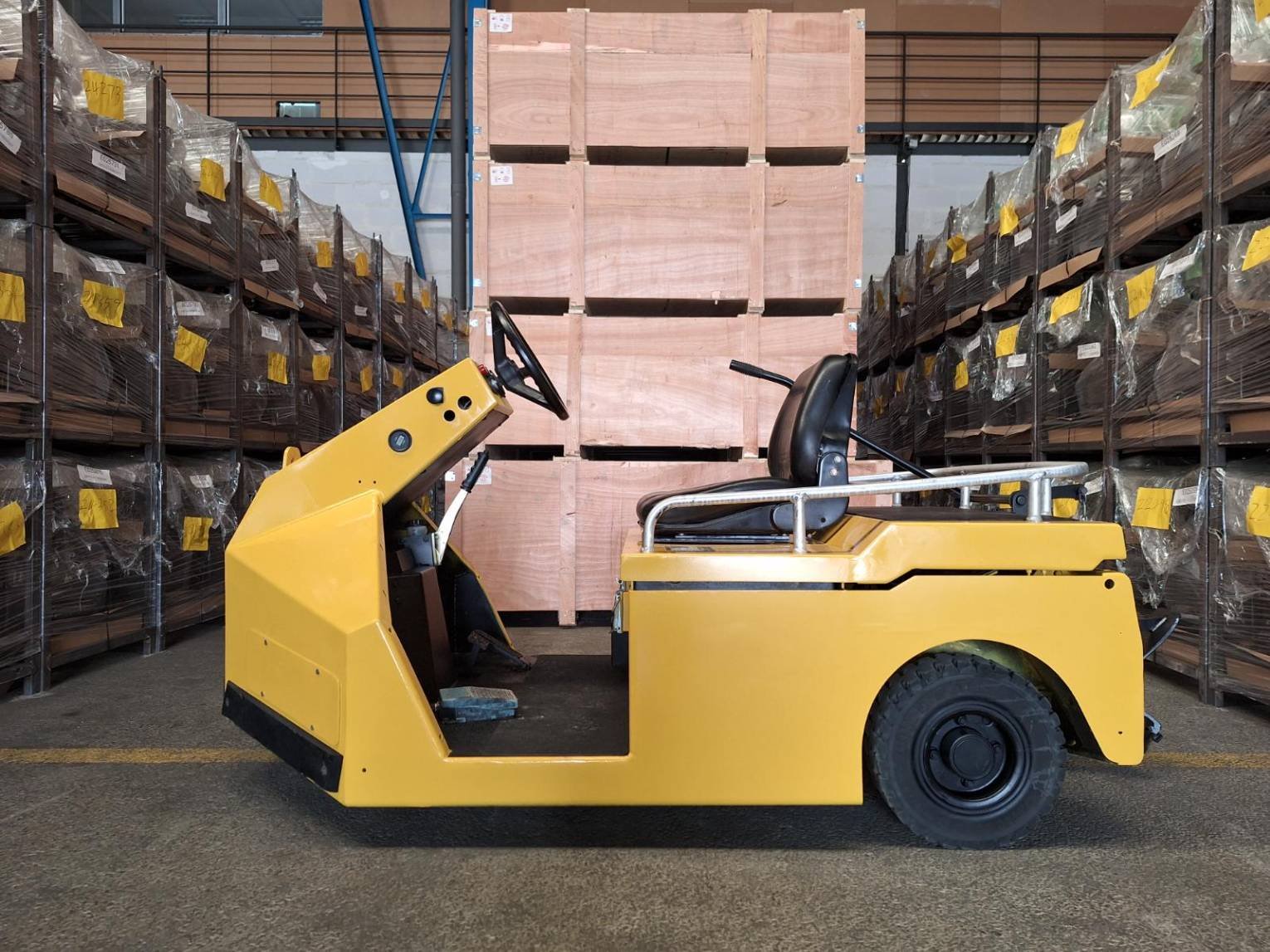

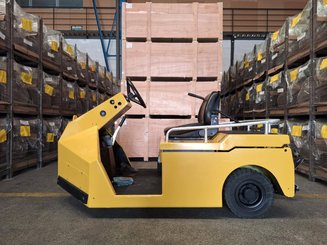

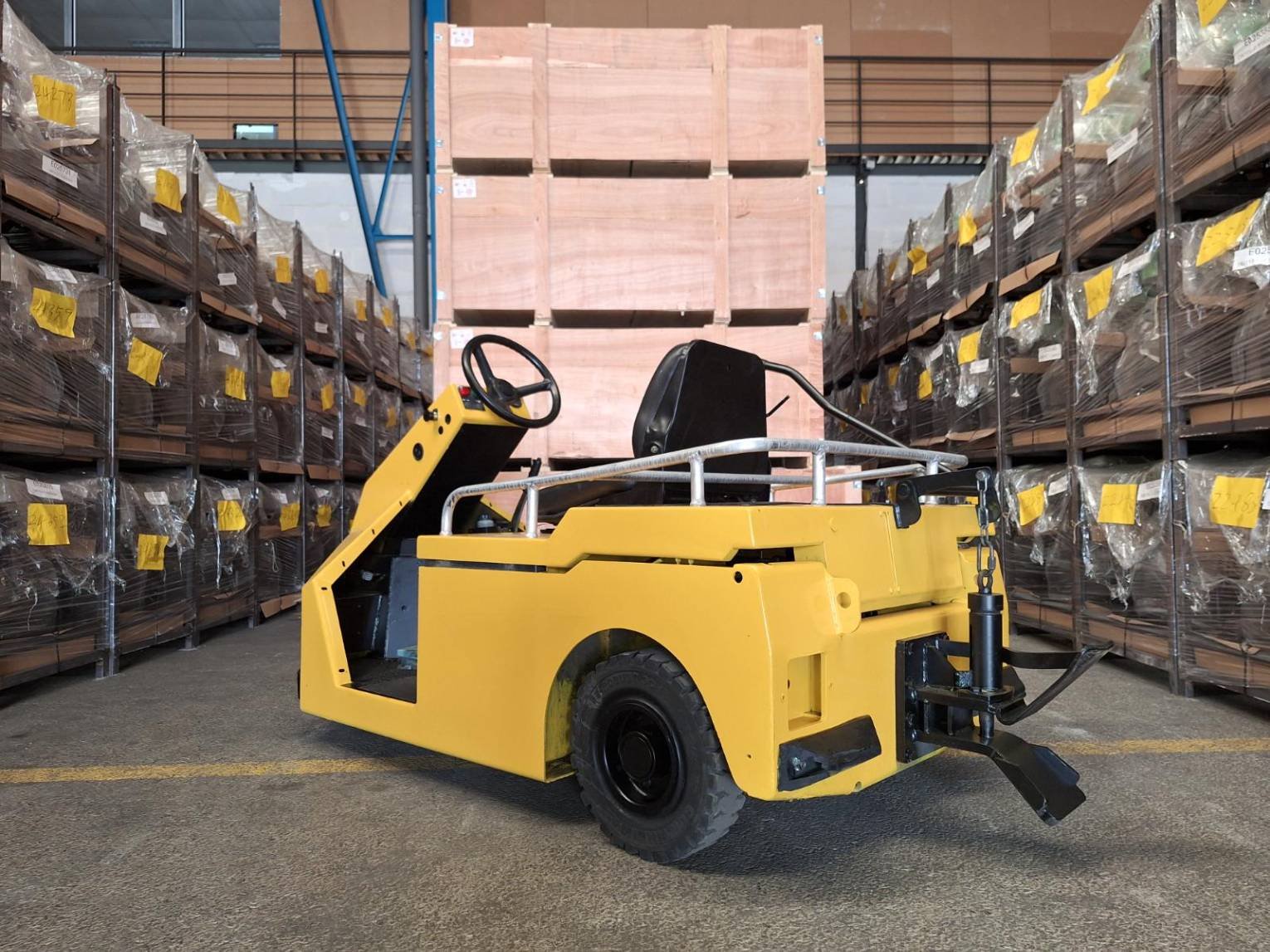

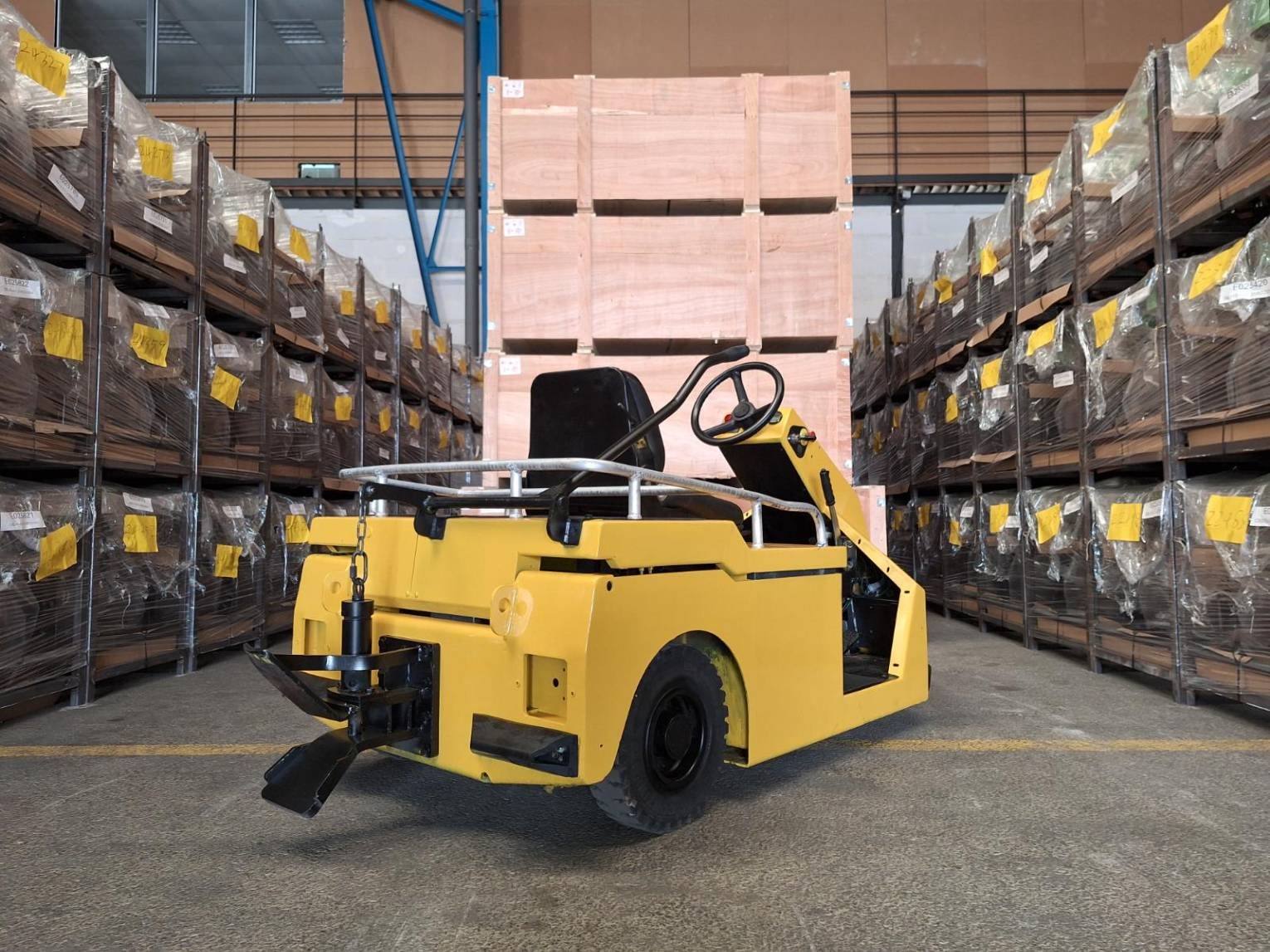

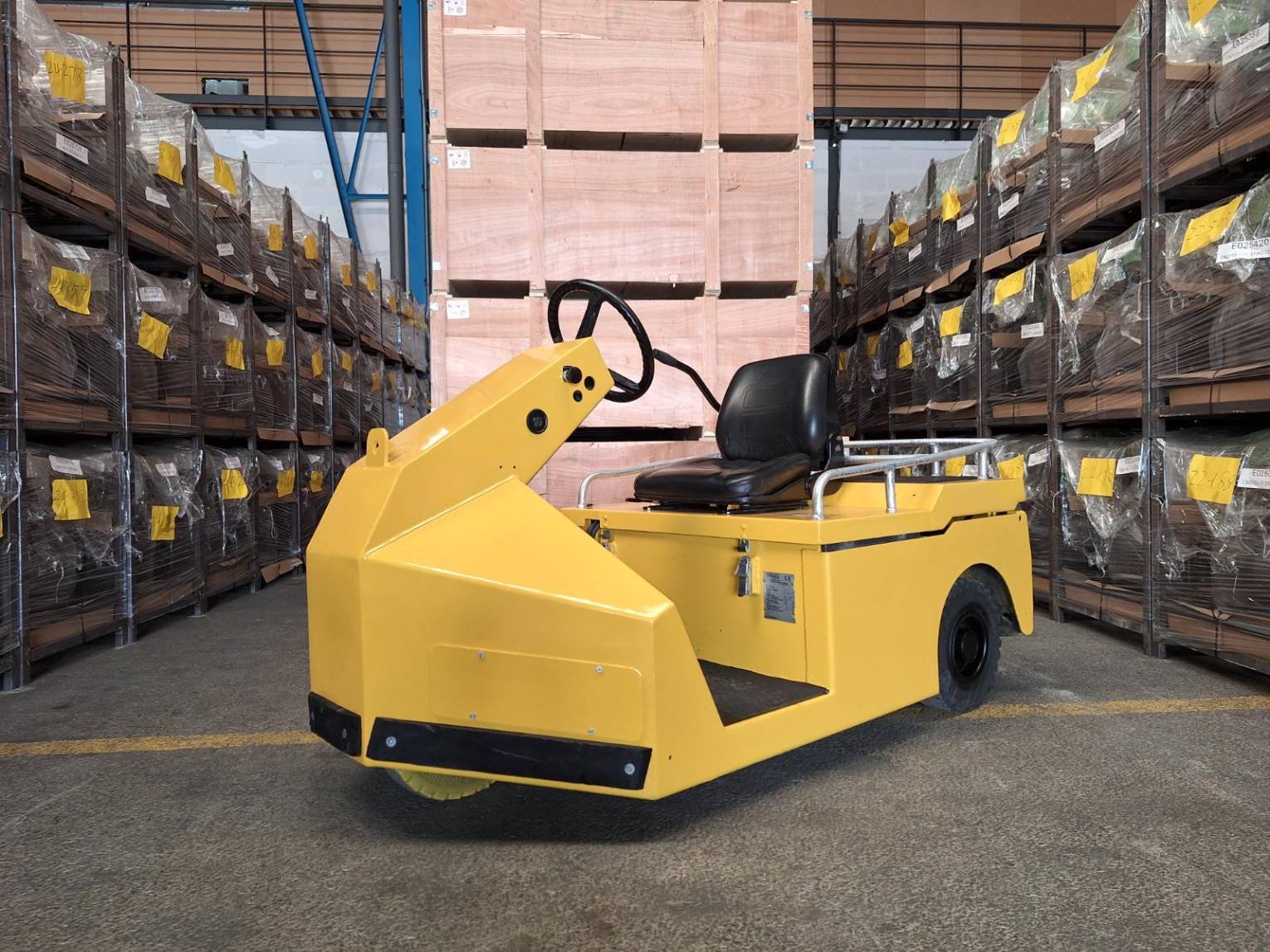

Terminaltraktoren Charlatte TE206 #19521

Technical Specifications:
Manufacturer: Charlatte
Model: TE.206
Drive: Electric (battery)
Operator Type: Seated
Rated Capacity: 6-7 tons
Rated Drawbar Pull: 1440 N
Wheelbase: 1420 mm
Weight:
Service Weight: 1050-1165 Kg
Axle Loading (Unladen): Front 450/600 Kg, Rear 420/745 Kg
Tyres/Chassis:
Tyres Type: Superelastic/Pneumatic
Tyres Size (Front/Rear): 4.00 - 8
Number of Wheels (Front/Rear): 1/2 (driven)
Rear Track: 880 mm
Dimensions:
Height of Overhead Guard: 1870 mm

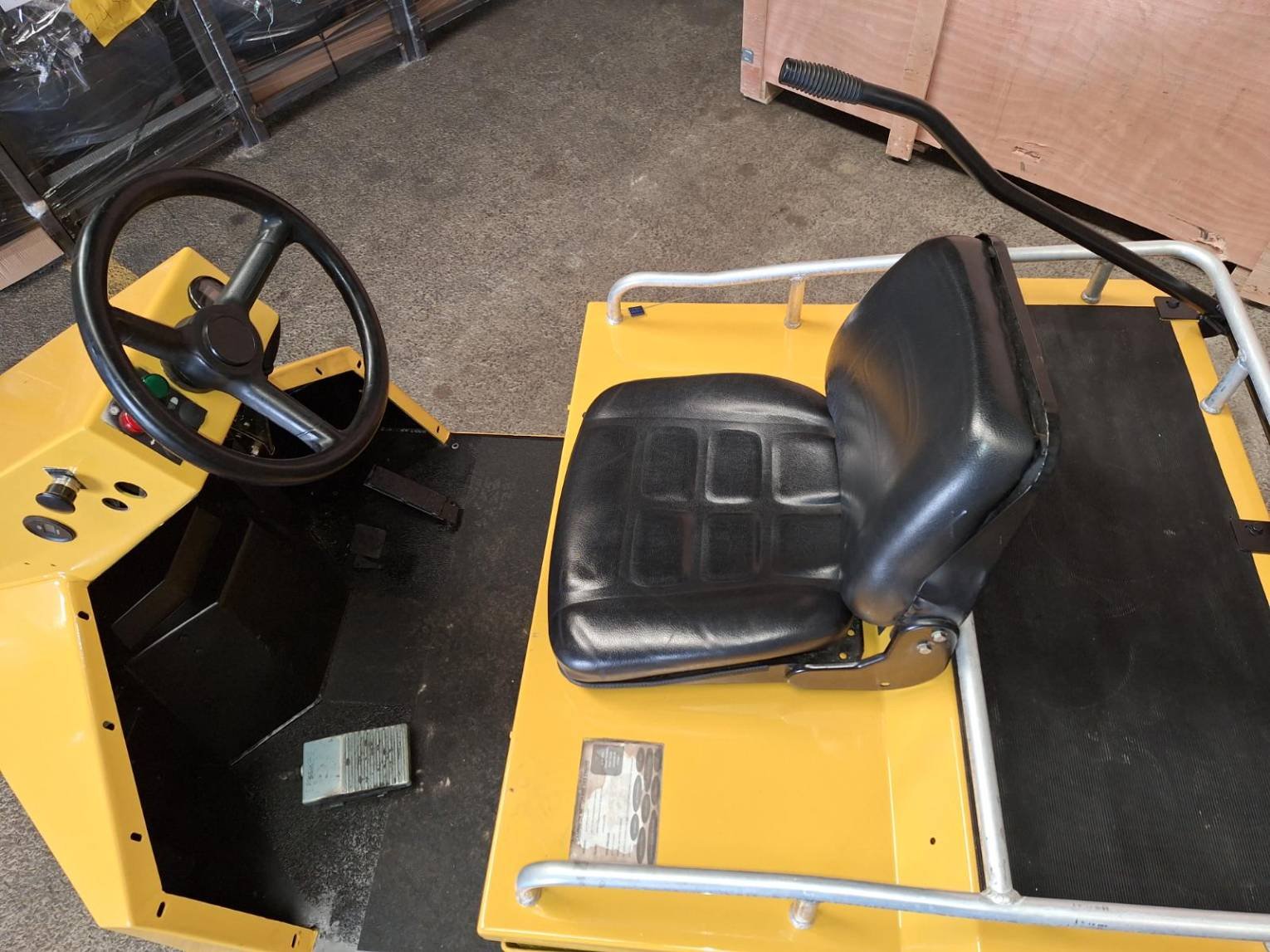

Seat Height: 792 mm
Coupling Height: 270/335/395 mm
Loading Height (Unladen): 680 mm
Rear Bed Max Load: 150 Kg
Length of Loading Surface: 395 mm
Overhang (Front/Rear): 290/395 mm, 290/475 mm
Width of Loading Surface: 920 mm
Overall Length: 2210/2290 mm
Overall Width: 1050 mm
Ground Clearance: 110 mm
Turning Radius: 1812 mm
Internal Turning Radius: 340 mm
Performance Data:
Travel Speed (Laden/Unladen): 7.5/14 Km/h, 7/14 Km/h
Travel Speed Backwards (Laden/Unladen): 6/7 Km/h, 5.6/7 Km/h
Max Drawbar Pull (Laden/Unladen): 4000/4750 N
Gradability (Laden/Unladen): 3.6/33%, 3.8/33%
Service Brake: Hydraulic/Electric
Electric Motor:
Drive Motor Rating: 8 Kw
Battery Voltage/Nominal Capacity: 48/320 V/Ah
Battery Weight: 520 Kg
Drive:
Type of Drive Unit: AC Transmission

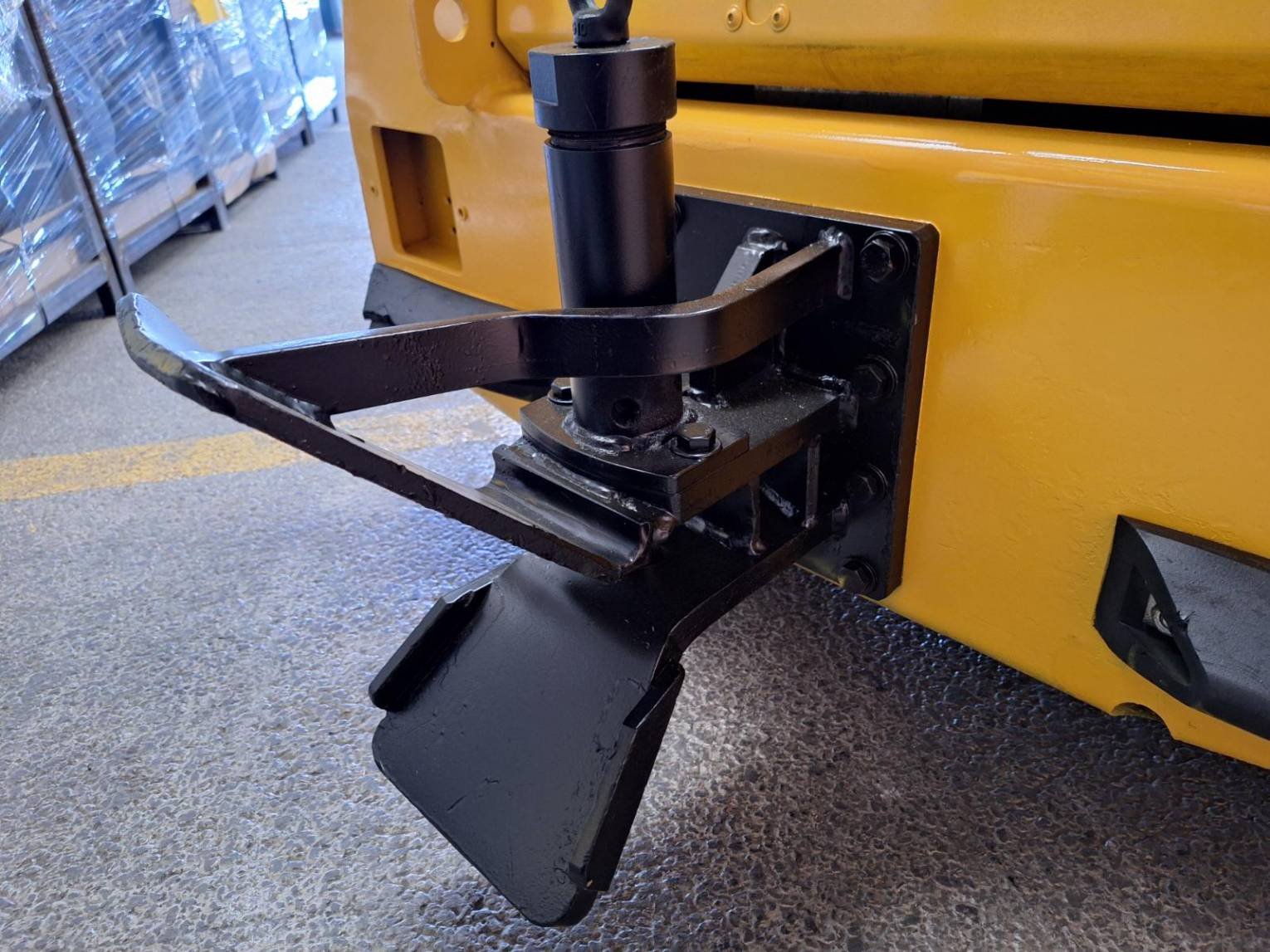

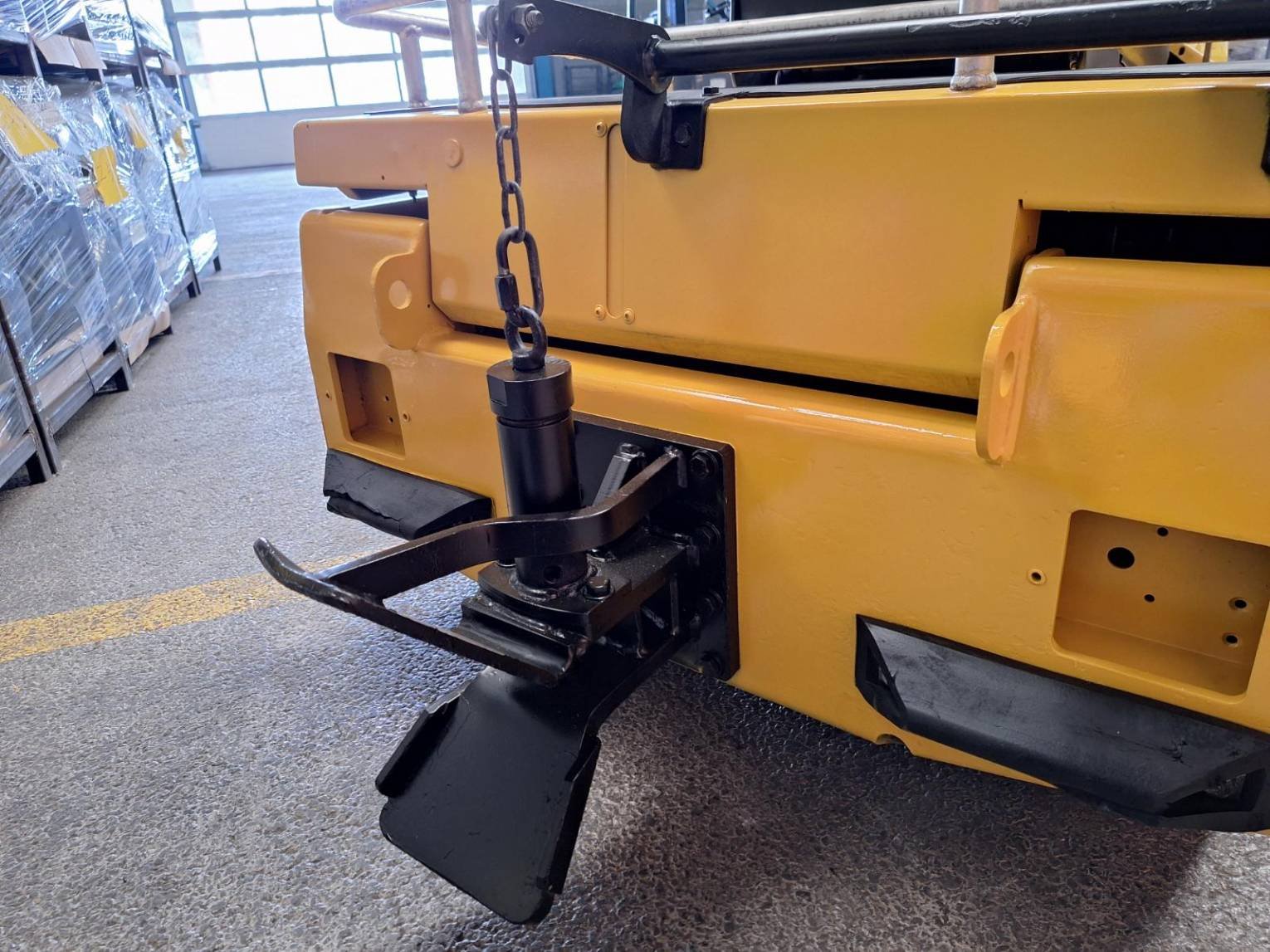

Coupling: 3 positions tow hitch (E type)
Wheel Drive: Mechanical
Parking Brake: Handbrake (optional electric
